Safety and No Pollution

• With a fully enclosed design;
• The observation window adopts an European CE Standard laser protective glass;
• The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
• The weight of machine is 7500kg.

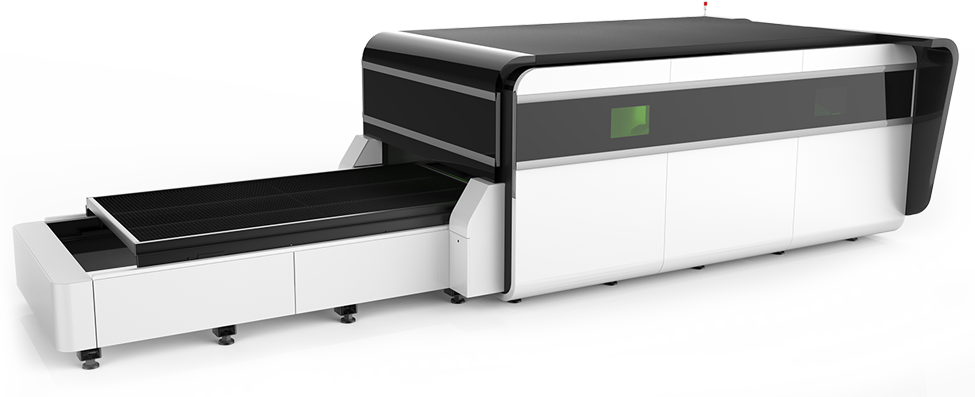

Exchanging Platform

• It adopts an up and down exchange platform;
• The converter is responsible for controlling
  the exchanging motor;
• The machine is able to finish the platform
  exchanging within 15s.

The Third Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

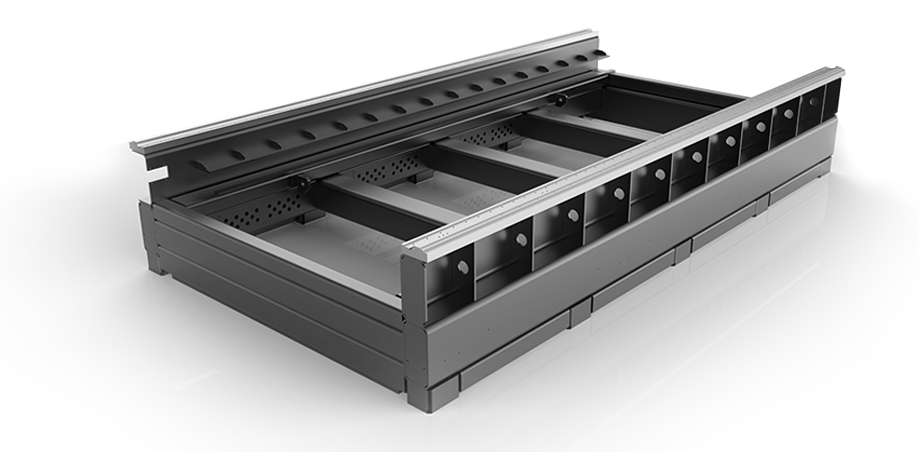

The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

• High strength, stability, tensile strength, ensuring 20 years of use without distortion;
• Thickness of rectangular pipe wall is 10mm and weights 4500 kg.

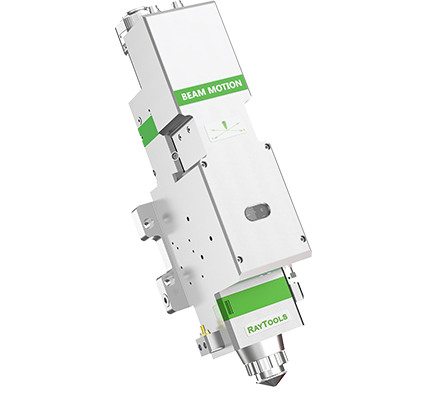

Without manual operation, it can focus automatically

• Without manual focusing

  The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

• Bigger adjustment range

  Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

• Long service life

  Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.



Transmission and Precision

German Tech Quality

G·WEIKE fiber laser cutting machine is equipped with Taiwan YYC rack, Japanese Yaskawa motor and French Motoreducer. The repeat positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.

Machine Technical Specification

Machine model	LF3015GA	LF4020GA	LF6025GA
Laser power	1000W 2000W 3000W 4000W 6000W(Optional)
Dimensions	8150*2825*2125mm	10750*3350*2310mm	15000*4018*2755mm
Working area	3000mm*1500mm	4000mm*2000mm	6000mm*2500mm
Repeat positioning accuracy	±0.02mm
Maximum speed	120m/min
Max. acceleration	1.5G
Voltage and frequency	380V 50Hz/60HZ

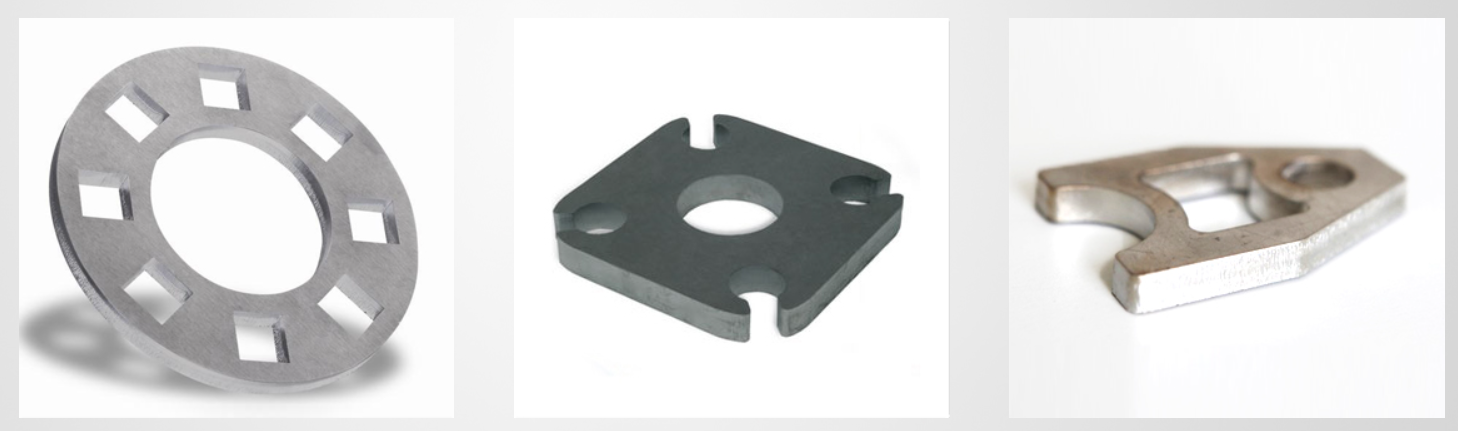

Industry Applications

LF3015GA fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
